Name: Three Phase Pad Mounted Transformer IEC/GB Standard
Brand: Seatrust
Availability: InStock
Rating: 4.8 (35 reviews)

Question 1

What voltage levels are available for this transformer?

Accepted Answer

This transformer series is available in three voltage levels: 10kV (30-2500kVA), 20kV (30-2500kVA), and 30kV (30-1600kVA). The voltage level selection depends on your distribution network requirements and local grid standards.

Question 2

What is the difference between IEC and GB standards?

Accepted Answer

IEC (International Electrotechnical Commission) standards are international guidelines, while GB (Guobiao) standards are Chinese national standards. Our transformers comply with both IEC 60076 series and GB/T 1094 standards, ensuring compatibility with both international and Chinese power systems.

Question 3

How does oil-immersed cooling compare to dry-type transformers?

Accepted Answer

Oil-immersed transformers offer superior cooling efficiency, higher capacity range (up to 2500kVA), better overload capacity, and longer service life compared to dry-type transformers. They are ideal for outdoor installations and high-capacity applications.

Question 4

What maintenance is required for oil-immersed transformers?

Accepted Answer

Regular maintenance includes annual oil testing for dielectric strength, routine inspections for oil leaks and component wear, load monitoring to prevent overloading, and periodic cleaning to maintain cooling efficiency. Our transformers are designed for easy maintenance with accessible inspection points.

Question 5

Can this transformer be used for both pad-mounted and pole-mounted installations?

Accepted Answer

Yes, this transformer series is versatile and can be configured for both pad-mounted (ground installation) and pole-mounted (overhead installation) applications. The mounting configuration is specified during ordering based on your installation requirements.

Question 6

What is the typical lifespan of these transformers?

Accepted Answer

With proper maintenance, our oil-immersed transformers have a typical service life of 25-30 years. The high-quality insulation materials and robust construction ensure long-term reliability even in harsh environmental conditions.

Question 7

Are these transformers suitable for renewable energy applications?

Accepted Answer

Absolutely. These transformers are widely used in renewable energy installations including solar farms and wind power stations. They handle voltage fluctuations well and provide stable power conversion for grid integration.

Question 8

What certifications do these transformers have?

Accepted Answer

Our transformers are fully certified to IEC 60076 series, IEC 60135, IEC 60214-1, GB/T 1094, GB/T 6451, and GB/T 7597 standards. They also hold UL/CSA certifications for international markets, ensuring compliance with global safety and performance requirements.

Capacity (kVA)	No-Load Loss (W)	Load Loss (W)	No-Load Current (%)	Impedance (%)	Weight (kg)
30	80	630	1.5	4.0	300
50	100	910	1.3	4.0	420
63	110	1090	1.2	4.0	480
80	130	1310	1.2	4.0	525
100	150	1580	1.1	4.0	590
125	170	1890	1.1	4.0	645
160	200	2310	1.0	4.0	690
200	240	2730	1.0	4.0	760
250	290	3200	0.9	4.0	855
315	340	3830	0.9	4.0	975
400	410	4520	0.8	4.0	1230
500	480	5410	0.8	4.0	1420
630	570	6200	0.6	4.5	1685
800	700	7500	0.6	4.5	2025
1000	830	10300	0.6	4.5	2310
1250	970	12000	0.5	5.0	2710
1600	1170	14500	0.5	5.0	3410
2000	1550	18300	0.4	5.0	4655
2500	1830	21200	0.4	5.0	6200

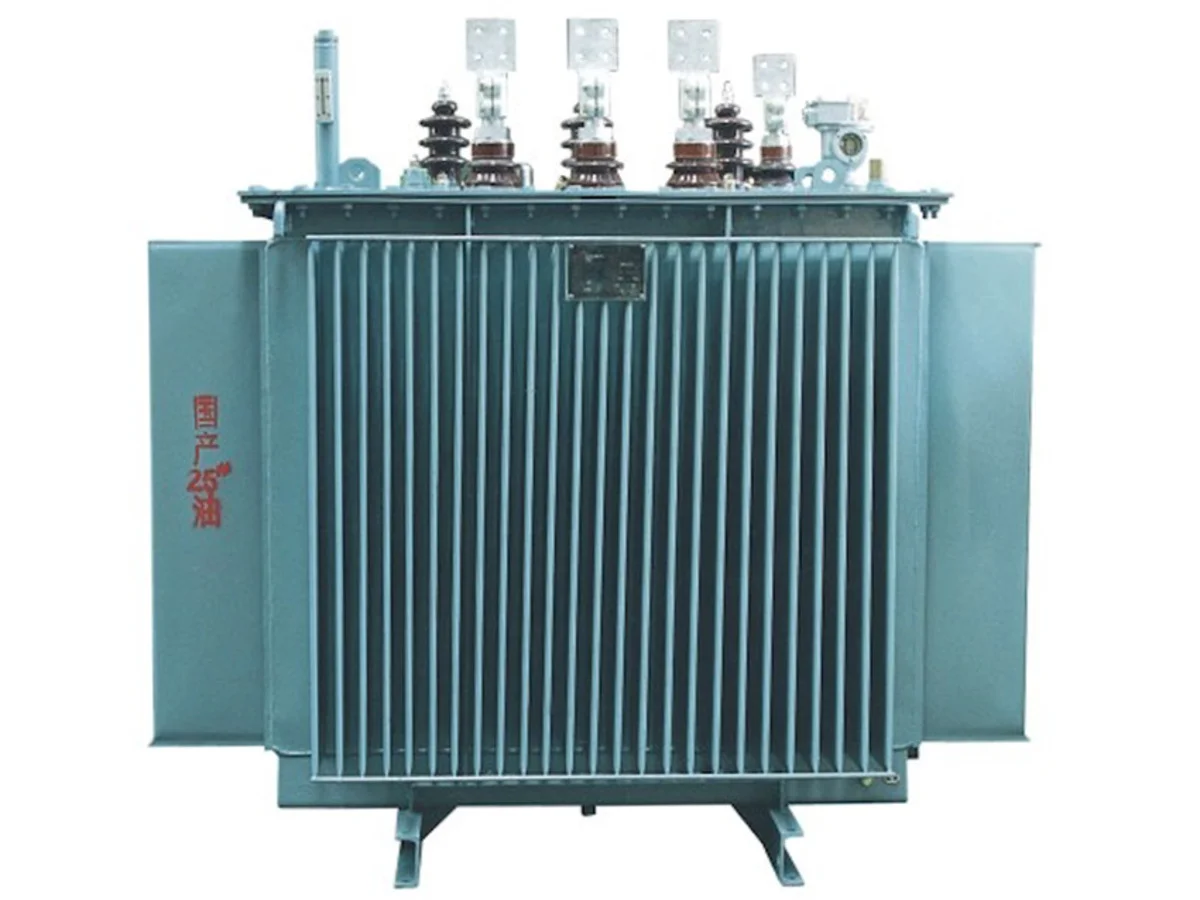

Three Phase Oil Immersed Transformer
IEC/GB Standard

Key Specifications

Product Features & Advantages

High Energy Efficiency

Reliable Cooling System

Strong Overload Capacity

Maintenance-Friendly

Technical Specifications

Standards Compliance
